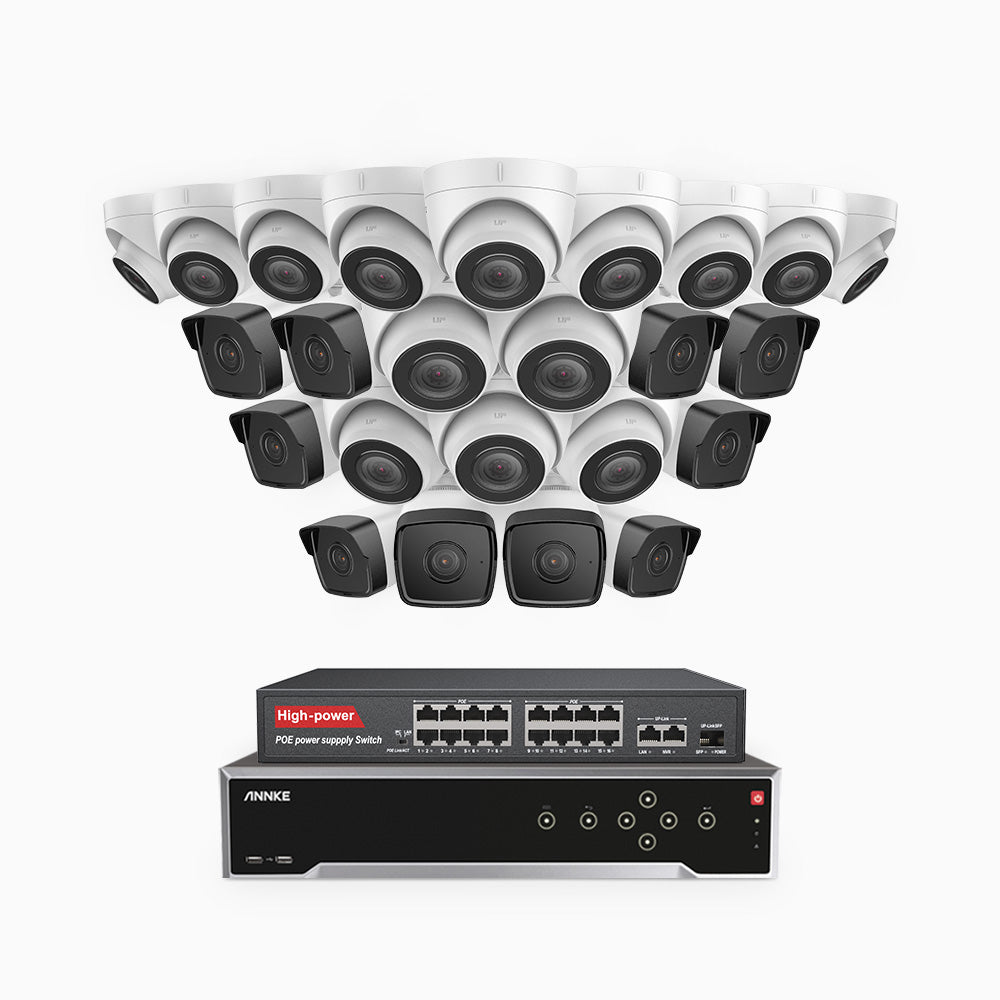

H500 - 3K 32 Kanal PoE Überwachungskamera-Set mit 10 Bullet Kameras & 14 Turm Kameras, Eingebautes Mikrofon & SD-Kartensteckplatz, funktioniert mit Alexa, Inklusive 16-Port-PoE-Switch, EXIR Nachtsicht 2.0, IP67

H500 - 3K 32 Kanal PoE Überwachungskamera-Set mit 10 Bullet Kameras & 14 Turm Kameras, Eingebautes Mikrofon & SD-Kartensteckplatz, funktioniert mit Alexa, Inklusive 16-Port-PoE-Switch, EXIR Nachtsicht 2.0, IP67

SKU: N931BB+JHJ014+I51DL0102*10+I51DS0102*14
€2.119,99
€1.928,99
HDD-Speicher: Keine HDD
Einen Experten fragen
Zwischensumme: €1.928,99
H500 - 3K 32 Kanal PoE Überwachungskamera-Set mit 10 Bullet Kameras & 14 Turm Kameras, Eingebautes Mikrofon & SD-Kartensteckplatz, funktioniert mit Alexa, Inklusive 16-Port-PoE-Switch, EXIR Nachtsicht 2.0, IP67

H500 - 3K 32 Kanal PoE Überwachungskamera-Set mit 10 Bullet Kameras & 14 Turm Kameras, Eingebautes Mikrofon & SD-Kartensteckplatz, funktioniert mit Alexa, Inklusive 16-Port-PoE-Switch, EXIR Nachtsicht 2.0, IP67

€2.119,99 €1.928,99
H500 - 3K 32 Kanal PoE Überwachungskamera-Set mit 10 Bullet Kameras & 14 Turm Kameras, Eingebautes Mikrofon & SD-Kartensteckplatz, funktioniert mit Alexa, Inklusive 16-Port-PoE-Switch, EXIR Nachtsicht 2.0, IP67

H500 - 3K 32 Kanal PoE Überwachungskamera-Set mit 10 Bullet Kameras & 14 Turm Kameras, Eingebautes Mikrofon & SD-Kartensteckplatz, funktioniert mit Alexa, Inklusive 16-Port-PoE-Switch, EXIR Nachtsicht 2.0, IP67

€2.119,99 €1.928,99
HDD-Speicher: Keine HDD
Beschreibung

H500 System

Das neue Sicherheitsupgrade
Für echte 3K PoE Performance

Echte 3K Super HD Qualität bei 20 fps

Mit dem fortschrittlichen OmniVision Sensor, 120 dB True WDR & 3D DNR liefert die IP Kamera führende 5MP Super HD Qualität bei flüssigen 20 fps (2592 x 1944 Pixel).

Deckt weite Bereiche mit einem bis zu 91°diagonalen Sichtfeld ab, um u.a. Foyers, Vorder-/Hintertüren, Gärten, Parkplätze oder Lagerhäuser zu schützen.

Farbnachtsicht mit externer Beleuchtung

Die von ANNKE entwickelte Farbnachtsicht-Technologie ermöglicht es der Kamera, Farbvideos mit einer Beleuchtung von über 0,028 Lux mit externer Lichtquelle zu erzeugen.

Mit der herausragenden EXIR Technologie & Smart IR kann die Kamera bis zu 30 Meter Aufnahmen in Schwarz & Weiß bei Beleuchtungsbedingungen von 0 Lux erzeugen, was zu dunkel ist, um Farbbilder zu rendern.

Audio mit Geräuschunterdrückung

Das eingebaute Mikrofon mit Geräuschunterdrückung kann Umgebungsgeräusche automatisch filtern und Stimmen von bis zu 6 Metern aufnehmen.

IP67 Wetterfest – Für extreme Bedingungen

Mit IP67 ist die Kamera komplett wetterfest und funktioniert selbst nach 30 Minuten in 1m tiefem Wasser und bei extremen Temperaturen bis zu -30 °C (-22 °F). Egal ob Regenfälle, Windböen oder Schneestürme, die Kamera hält extremen Wetterbedingungen stand.

  • Metall & ABS

    Robustes Gehäuse

  • -22°F | -30 °C

    Kälteresistent

  • 140°F | 60 °C

    Hitzeresistent

  • IP67

    Wasserschutz

    • Kleiner Preis, viele Features

  • PoE oder DC Power

    Schließen Sie die Kamera über PoE mit einem NVR/PoE-Injektor oder über die Steckdose zur Stromversorgung an.

  • Lokaler Speicher

    Unterstützt bis zu 256GB TF-Karte (nicht inbegriffen) für einen lokalen Videospeicher ohne monatliche Cloud-Gebühren.

  • Einstellbare Bewegungszonen

    Erstellen Sie spezielle Bewegungszonen für die Garage oder Haustür, um nur noch relevante Bewegungsalarme zu erhalten.

  • Bewegungsalarm und Fernzugriff

    Erhalten Sie sofortige App- und E-Mail-Benachrichtigungen, wenn Bewegungsereignisse erfasst werden. Steuern Sie die Kamera mit Ihren mobilen Geräten.

    • Spezifikationen
    Specification

    Download H500 Specification

    What's in the Box (I51DS)
  • ➀ 1X/4X Security Camera(s)
  • ➁ 1X/4X Mounting Screw Bag(s)
  • ➂ 1X User Manual
  • ➃1X Screw Driver (For dome camera only)
    • I51DS Camera
    Image Sensor1/3" Progressive Scan CMOS Max resolution3K(3072*1728), 16: 9 picture ratio is more suitable for the most popular display
    Main Stream50 Hz: 20 fps (3072*1728), 25 fps ( 1920 X 1080, 1280 X 720)
    60 Hz:  20 fps (3072*1728), 24 fps ( 1920 X 1080, 1280 X 720)    		 Substream50 Hz: 25 fps (1280 X 720,640 X 480, 640 X 360)
    60 Hz: 24 fps (1280 X 720,640 X 480, 640 X 360)
    Video Bitrate32 Kbps - 6 Mbps Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
    Audio InputBuilt-in Microphone, record with audio Lens2.8 mm
    Min. IlluminationColor: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR Angle of ViewHorizontal FOV 99°, vertical FOV 55°, diagonal FOV 116°
    Number of Infrared LEDs2 pcs Night Vision DistanceUp to 100 ft/30 m
    Video CompressionMain stream: H.265+/H.265/H.264+/H.264
    Sub-stream: H.265/H.264/MJPEG    		 Motion detection 2.0Supoort, include Human & Vehicle detection
    Image EnhancementBLC, HLC, 3D DNR Wide Dynamic Range120 dB WDR
    ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, SMTP APIOpen Network Video Interface
    Region of Interest (ROI)1 fixed region for main stream Privacy Mask4 programmable polygon privacy masks
    General FunctionMirror,rotate,password protection,video tampering alarm, remote access Ethernet1 RJ45 10 M/100 M self-adaptive Ethernet port
    Image Sensor1/3" Progressive Scan CMOS
    Main Stream50 Hz: 20 fps (3072*1728), 25 fps ( 1920 X 1080, 1280 X 720)
    60 Hz:  20 fps (3072*1728), 24 fps ( 1920 X 1080, 1280 X 720)
    Video Bitrate32 Kbps - 6 Mbps
    Audio InputBuilt-in Microphone, record with audio
    Min. IlluminationColor: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
    Number of Infrared LEDs2 pcs
    Video CompressionMain stream: H.265+/H.265/H.264+/H.264
    Sub-stream: H.265/H.264/MJPEG
    Image EnhancementBLC, HLC, 3D DNR
    ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, SMTP
    Region of Interest (ROI)1 fixed region for main stream
    General FunctionMirror,rotate,password protection,video tampering alarm, remote access
    Max resolution 3K(3072*1728), 16: 9 picture ratio is more suitable for the most popular display
    Substream 50 Hz: 25 fps (1280 X 720,640 X 480, 640 X 360)
    60 Hz: 24 fps (1280 X 720,640 X 480, 640 X 360)
    Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
    Lens 2.8 mm
    Angle of View Horizontal FOV 99°, vertical FOV 55°, diagonal FOV 116°
    Night Vision Distance Up to 100 ft/30 m
    Motion detection 2.0 Supoort, include Human & Vehicle detection
    Wide Dynamic Range 120 dB WDR
    API Open Network Video Interface
    Privacy Mask 4 programmable polygon privacy masks
    Ethernet 1 RJ45 10 M/100 M self-adaptive Ethernet port
    I51DS General
    HousingMetal & Plastic ColorWhite & Black
    StorageBuilt-in microSD/SDHC/SDXC Slot, up to 256 GB Hardware ResetYes
    Operating PowerDC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W Operating Temperature-22 °F – 140 °F/-30 °C – 60 °C
    Indoor/Outdoor UseIndoor/Outdoor Interface ProtectionIP67, TVS 2000 V Lightning Protection, Surge Protection and Voltage Transient Protection
    Dimension (L X W X H)7.0" X 2.6" X 2.7"/177.6 X 66.2 X 67.8 mm Weight0.6 lb./270 g
    HousingMetal & Plastic
    StorageBuilt-in microSD/SDHC/SDXC Slot, up to 256 GB
    Operating PowerDC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W
    Indoor/Outdoor UseIndoor/Outdoor
    Dimension (L X W X H)7.0" X 2.6" X 2.7"/177.6 X 66.2 X 67.8 mm
    Color White & Black
    Hardware Reset Yes
    Operating Temperature -22 °F – 140 °F/-30 °C – 60 °C
    Interface Protection IP67, TVS 2000 V Lightning Protection, Surge Protection and Voltage Transient Protection
    Weight 0.6 lb./270 g
    What's in the Box (I51DL)
  • ➀ 1X/4X Security Camera(s)
  • ➁ 1X/4X Mounting Screw Bag(s)
  • ➂ 1X User Manual
  • ➃1X Screw Driver (For dome camera only)
    • I51DL Camera
    Image Sensor1/3" Progressive Scan CMOS Max resolution3K(3072*1728), 16: 9 picture ratio is more suitable for the most popular display
    Main Stream50 Hz: 20 fps (3072*1728), 25 fps ( 1920 X 1080, 1280 X 720)
    60 Hz:  20 fps (3072*1728), 24 fps ( 1920 X 1080, 1280 X 720)    		 Substream50 Hz: 25 fps (1280 X 720,640 X 480, 640 X 360)
    60 Hz: 24 fps (1280 X 720,640 X 480, 640 X 360)
    Video Bitrate32 Kbps - 6 Mbps Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
    Video CompressionMain stream: H.265+/H.265/H.264+/H.264
    Sub-stream: H.265/H.264/MJPEG    		 Audio InputBuilt-in Microphone, record with audio
    Lens2.8 mm Min. IlluminationColor: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
    Angle of ViewHorizontal FOV 99°, vertical FOV 55°, diagonal FOV 116° Number of Infrared LEDs2 pcs
    Night Vision DistanceUp to 100 ft/30 m Motion detection 2.0Supoort, include Human & Vehicle detection
    Image EnhancementBLC, HLC, 3D DNR Wide Dynamic Range120 dB WDR
    ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, SMTP APIOpen Network Video Interface
    Region of Interest (ROI)1 fixed region for main stream Privacy Mask4 programmable polygon privacy masks
    General FunctionMirror,rotate,password protection,video tampering alarm, remote access Ethernet1 RJ45 10 M/100 M self-adaptive Ethernet port
    Image Sensor1/3" Progressive Scan CMOS
    Main Stream50 Hz: 20 fps (3072*1728), 25 fps ( 1920 X 1080, 1280 X 720)
    60 Hz:  20 fps (3072*1728), 24 fps ( 1920 X 1080, 1280 X 720)
    Video Bitrate32 Kbps - 6 Mbps
    Video CompressionMain stream: H.265+/H.265/H.264+/H.264
    Sub-stream: H.265/H.264/MJPEG
    Lens2.8 mm
    Angle of ViewHorizontal FOV 99°, vertical FOV 55°, diagonal FOV 116°
    Night Vision DistanceUp to 100 ft/30 m
    Image EnhancementBLC, HLC, 3D DNR
    ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, SMTP
    Region of Interest (ROI)1 fixed region for main stream
    General FunctionMirror,rotate,password protection,video tampering alarm, remote access
    Max resolution 3K(3072*1728), 16: 9 picture ratio is more suitable for the most popular display
    Substream 50 Hz: 25 fps (1280 X 720,640 X 480, 640 X 360)
    60 Hz: 24 fps (1280 X 720,640 X 480, 640 X 360)
    Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
    Audio Input Built-in Microphone, record with audio
    Min. Illumination Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
    Number of Infrared LEDs 2 pcs
    Motion detection 2.0 Supoort, include Human & Vehicle detection
    Wide Dynamic Range 120 dB WDR
    API Open Network Video Interface
    Privacy Mask 4 programmable polygon privacy masks
    Ethernet 1 RJ45 10 M/100 M self-adaptive Ethernet port
    I51DL General
    HousingMetal & Plastic ColorWhite
    StorageBuilt-in microSD/SDHC/SDXC Slot, up to 256 GB Hardware ResetYes
    Operating PowerDC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W Operating Temperature-22 °F – 140 °F/-30 °C – 60 °C
    Indoor/Outdoor UseIndoor/Outdoor Weight0.6 lb./270 g
    Interface ProtectionIP67, TVS 2000 V Lightning Protection, Surge Protection and Voltage Transient Protection Dimension (L X W X H)Ø 110 × 100.8 mm (Ø 4.3" × 4.0")
    HousingMetal & Plastic
    StorageBuilt-in microSD/SDHC/SDXC Slot, up to 256 GB
    Operating PowerDC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W
    Indoor/Outdoor UseIndoor/Outdoor
    Interface ProtectionIP67, TVS 2000 V Lightning Protection, Surge Protection and Voltage Transient Protection
    Color White
    Hardware Reset Yes
    Operating Temperature -22 °F – 140 °F/-30 °C – 60 °C
    Weight 0.6 lb./270 g
    Dimension (L X W X H) Ø 110 × 100.8 mm (Ø 4.3" × 4.0")
    What's in the Box (I51DN)
  • ➀ 1X/4X Security Camera(s)
  • ➁ 1X/4X Mounting Screw Bag(s)
  • ➂ 1X User Manual
  • ➃1X Screw Driver (For dome camera only)
    • I51DN Camera
    Image Sensor1/3" Progressive Scan CMOS IVideo compressionH.265+/H.265/H.264+/H.264
    Main Stream Max. Frame Rate50Hz: 20 fps (2592 × 1944), 25 fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
    60Hz: 20 fps (2592 × 1944), 30 fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)    		 Sub-stream Max. Frame Rate50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)
    60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
    Video Bitrate32 Kbps - 8 Mbps Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
    Audio inputBulit-in Microphone Lens2.8 mm
    Min. IlluminationColor: 0.028 Lux @(F2.0, AGC On) Angle of ViewHorizontal FoV 71.5°, Vertical FoV 53°, Diagonal FoV 91°
    Number of Infrared LEDs2 pcs Night Vision DistanceUp to 100 ft/30 m
    Wide Dynamic Range120DB WDR  DNR3D DNR
    ONVIFSupport IR Cut FilterYes
    EthernetRJ45 X1 (10 M/100 M)
    Image Sensor1/3" Progressive Scan CMOS
    Main Stream Max. Frame Rate50Hz: 20 fps (2592 × 1944), 25 fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
    60Hz: 20 fps (2592 × 1944), 30 fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
    Video Bitrate32 Kbps - 8 Mbps
    Audio inputBulit-in Microphone
    Min. IlluminationColor: 0.028 Lux @(F2.0, AGC On)
    Number of Infrared LEDs2 pcs
    Wide Dynamic Range120DB WDR
    ONVIFSupport
    EthernetRJ45 X1 (10 M/100 M)
    IVideo compression H.265+/H.265/H.264+/H.264
    Sub-stream Max. Frame Rate 50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)
    60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
    Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
    Lens 2.8 mm
    Angle of View Horizontal FoV 71.5°, Vertical FoV 53°, Diagonal FoV 91°
    Night Vision Distance Up to 100 ft/30 m
    DNR 3D DNR
    IR Cut Filter Yes
    I51DN General
    HousingMetal & Plastic ColorWhite
    StorageBuilt-in microSD/SDHC/SDXC Slot, up to 256 GB Hardware ResetYes
    Operating PowerDC 12 V; PoE (802.3af) Operating Temperature-22 °F – 140 °F/-30 °C – 60 °C
    Indoor/Outdoor UseIndoor/Outdoor Interface ProtectionIP67, TVS 2000 V Lightning Protection, Surge Protection and Voltage Transient Protection
    Dimension (L X W X H)Ø120 × 92.2 mm (4.72" × 3.63") Weight440 g (1.0 lb.)
    HousingMetal & Plastic
    StorageBuilt-in microSD/SDHC/SDXC Slot, up to 256 GB
    Operating PowerDC 12 V; PoE (802.3af)
    Indoor/Outdoor UseIndoor/Outdoor
    Dimension (L X W X H)Ø120 × 92.2 mm (4.72" × 3.63")
    Color White
    Hardware Reset Yes
    Operating Temperature -22 °F – 140 °F/-30 °C – 60 °C
    Interface Protection IP67, TVS 2000 V Lightning Protection, Surge Protection and Voltage Transient Protection
    Weight 440 g (1.0 lb.)
    Video & Audio (NVR)
    Video CompressionH.264+/H.264/H.265/H.265+/MPEG4 IP Video Input8CH PoE
    Video OutputHDMI up to 4K; VGA up to 1080p Audio Input/Output1/1 RCA
    Incoming Bandwidth80 M Max Recording ResolutionUp to 8MP (3840 X 2160)
    Max Playback ResolutionUp to 8MP (3840 X 2160) Max Playback Channel8CH
    Max Playback Capacity4CH @1080p; 1CH @8MP
    Video CompressionH.264+/H.264/H.265/H.265+/MPEG4
    Video OutputHDMI up to 4K; VGA up to 1080p
    Incoming Bandwidth80 M
    Max Playback ResolutionUp to 8MP (3840 X 2160)
    Max Playback Capacity4CH @1080p; 1CH @8MP
    IP Video Input 8CH PoE
    Audio Input/Output 1/1 RCA
    Max Recording Resolution Up to 8MP (3840 X 2160)
    Max Playback Channel 8CH
    Hard Drive (NVR)
    HDD1 SATA Interface HDD CapacityUp to 6 TB Capacity for Each HDD
    HDD1 SATA Interface
    HDD Capacity Up to 6 TB Capacity for Each HDD
    External Interface (NVR)
    Network InterfaceRJ45 X1 (10/100/1000 M) PoE8 Ports (IEEE802.3at / af)
    USB2X USB 2.0
    Network InterfaceRJ45 X1 (10/100/1000 M)
    USB2X USB 2.0
    PoE 8 Ports (IEEE802.3at / af)
    NVR General
    Operating PowerDC 48 V Working Temperature14 °F — 131 °F/-10 °C — +55 °C
    Dimensions (W X H X D)12.4” X 9.4” X 1.9”/315 X 240 X 48 mm Weight (Without Hard Disk)2.2 lbs./1 kg
    Power Consumption≤10 W (Without HDD and PoE)
    PoE: Max 25.5 W for Single Port
    Operating PowerDC 48 V
    Dimensions (W X H X D)12.4” X 9.4” X 1.9”/315 X 240 X 48 mm
    Working Temperature 14 °F — 131 °F/-10 °C — +55 °C
    Weight (Without Hard Disk) 2.2 lbs./1 kg
    Power Consumption≤10 W (Without HDD and PoE)
    PoE: Max 25.5 W for Single Port
    Bewertungen
