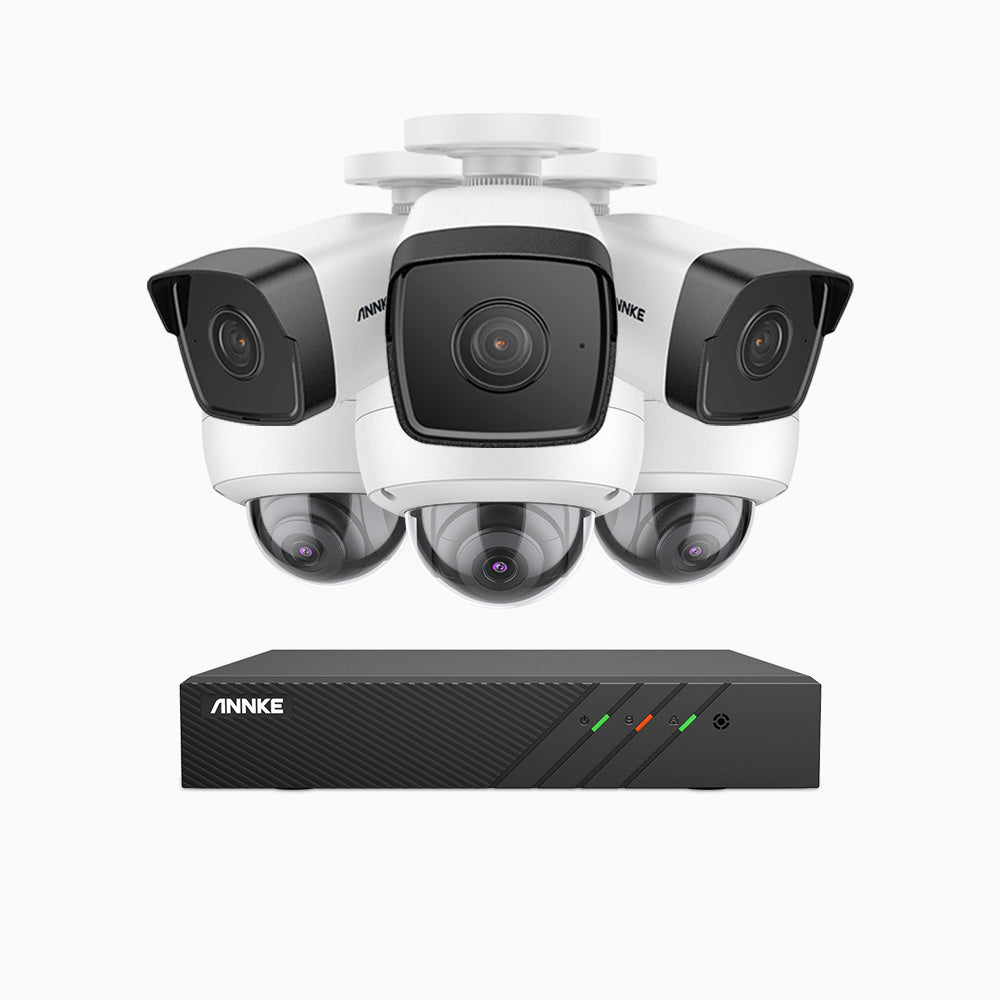

ANNKE H500 5MP 8 Kanal PoE Überwachungskamera-Set mit 3 Bullet Kameras & 3 Dome Kameras - ANNKE Store
Start of Header Area

H500 - 5MP 8 Kanal PoE Überwachungskamera-Set mit 3 Bullet Kameras & 3 Dome Kameras, EXIR Nachtsicht 2.0, Eingebautes Mikrofon, Unterstützt RTSP und ONVIF, funktioniert mit Alexa, IP67

H500 - 5MP 8 Kanal PoE Überwachungskamera-Set mit 3 Bullet Kameras & 3 Dome Kameras, EXIR Nachtsicht 2.0, Eingebautes Mikrofon, Unterstützt RTSP und ONVIF, funktioniert mit Alexa, IP67

€431,99

€489,99

inkl. MwSt.

SKU: N48PBB+I51DL0102*3+I51DN0102*3

HDD-Speicher
Note: NC400 are now on 35% off DOTW sale with code DOTW02.

Secure Checkout With:

  • Stichworte: 100 ft - EXIR Night Vision , 5MP , 6 , Bullet&Dome , Eingebautes Mikrophon , EXIR Nachtsicht , NVR 8-Kanal , White

    H500 System

    Das neue Sicherheitsupgrade
    Für echte 5MP PoE Performance

  • 8-KANAL

    NVR
    Für bis zu 8 Kameras

  • 6 KAMERAS

    5MP Super HD
    Erfasst jeden Winkel

  • IP67

    Perfekt für
    den Außenbereich

  • 30 METER

    EXIR Nachtsicht
    Nachts klar sehen

  • Verbesserte 5MP Super HD Qualität in allen Umgebungen

    H500 wurde förmlich auf jedes Alltags-Szenario wie Garagen, Vordertüren oder in Geschäften bei heißen & kalten Temperaturen getestet. Die Kameras liefern in jeder Testumgebung stabile Hi-Fi Aufnahmen.

    Farbnachtsicht mit externer Beleuchtung

    Die von ANNKE entwickelte Farbnachtsicht-Technologie ermöglicht es der Kamera, Farbvideos mit einer Beleuchtung von über 0,028 Lux mit externer Lichtquelle zu erzeugen.

    Mit der herausragenden EXIR Technologie & Smart IR kann die Kamera bis zu 30 Meter Aufnahmen in Schwarz & Weiß bei Beleuchtungsbedingungen von 0 Lux erzeugen, was zu dunkel ist, um Farbbilder zu rendern.

    Audio mit Geräuschunterdrückung

    Das eingebaute Mikrofon mit Geräuschunterdrückung kann Umgebungsgeräusche automatisch filtern und Stimmen von bis zu 6 Metern aufnehmen.

    Audioaufnahmen

    Audioaufnahmen erhöhen die Sicherheitsabdeckung, wodurch Ereignisse besser interpretiert werden können: für einen lebendigen Sound statt stummen Aufnahmen.

    Mute-Funktion

    Audioaufnahmen können je nach Gesetzgebung unterschiedlich reguliert werden. Wenn die Audioüberwachung nicht zulässig ist oder kein Audio gewünscht wird, können die Aufnahmen einfach stummgeschaltet werden.

    Fortschrittliches H.265+ Videoformat

    Die ANNKE H.265+ Codierung ermöglicht der Kamera, längere Videos bei weniger Bandbreite aufzunehmen. Hierdurch kann bares Geld beim Kauf von HDDs gespart werden.

  • Kleine Dateigrößen

    Senden Sie kleinere Dateigrößen zum Netzwerk-Videorecorder, ohne 5MP-Qualität zu verlieren.

  • Lange Aufnahmen

    Die H.265+ Codierung ermöglicht längere Aufnahmen, bevor ältere Aufzeichnungen überschrieben werden.

  • Fernzugriff auf 5MP Live View

    Sehen Sie sich hochwertige 5MP Super HD Aufnahmen bei geringem Datenvolumen auf Ihrem Smartphone an.

  • Widersteht den kältesten und heißesten Klimabedingungen

    Die wetterfeste IP67 Kamera kann förmlich allen Wetterbedingungen wie schweren Schneestürmen und heftigen Regenfällen standhalten. Die Kamera wurde für extreme Temperaturen (-30 °C bis 60 °C) getestet, um Sie das ganze Jahr über zu schützen, wo immer Sie sich befinden.

  • Metall & ABS

    Robustes Gehäuse

  • 60 °C

    Hitzeresistent

  • -30 °C

    Kälteresistent

  • IP67

    Wasserschutz

  • Dreifache und flexible Videoaufnahme-Modi

    Ihr NVR kann kontinuierlich Videos aufnehmen; entweder durch individuelle Zeitpläne oder nur dann, wenn Bewegungen erkannt werden. Die Aufnahmemodi sind für jede Kamera individuell einstellbar, sodass Kameras in wichtigen Bereichen 24/7 aufzeichnen, während Kameras in niedrigen Aktivitätsbereichen nur bei Bewegungen Videos aufnehmen.

    Die eingebaute Sicherheits-2TB-HDD wurde entwickelt, um 24/7 aufzunehmen, ganz ohne Cloud-Gebühren. Sie können den Speicherplatz bis auf 6TB erhöhen.

    Einfaches Plug & Play PoE Setup

    Die Power over Ethernet (PoE) Verbindung liefert eine All-in-one-Lösung, um Kosten und Installationszeiten zu verringern. Sie können die Kamera und den NVR mit einem einzelnen Ethernet-Kabel zur Strom-, Netzwerk- und Videoübertragung verbinden. Hierdurch muss die Kamera nicht in der Nähe einer Steckdose angeschlossen werden.

    Intelligente Bewegungsalarme

    Sobald Bewegungen erkannt werden, erhalten Sie sofortige App- und E-Mail-Benachrichtigungen mit Snapshots, sodass Sie immer alles im Blick haben.

    Kleiner Preis, viele Features

  • Unterstützt RTSP & ONVIF

    Das System kann mit Software von Drittanbietern &ONVIF 4K Kamera, wie Blue Iris, Synology und vielen weiteren Anbietern verwendet werden.

  • Einstellbare Bewegungszonen

    Erstellen Sie spezielle Bewegungszonen für die Garage oder Haustür, um nur noch relevante Bewegungsalarme zu erhalten.

  • Grenzenloser Fernzugriff

    Mit der intuitiven ANNKE Vision App können Sie von praktisch überall auf der Welt auf Ihr System zugreifen.

  • 24/7 Aufnahmen ohne Internet

    NVR & Kameras verbinden sich nach der Installation und nehmen rund um die Uhr Videos selbst ohne Internetverbindung auf.

  • Specification

    Download H500 Specification

    What's in the Box
  • ➀ 1X/4X Security Camera(s)
  • ➁ 1X/4X Mounting Screw Bag(s)
  • ➂ 1X User Manual
  • ➃1X Screw Driver (For dome camera only)
  • Camera
    Image Sensor1/3" Progressive Scan CMOS Max resolution3K(3072*1728), 16: 9 picture ratio is more suitable for the most popular display
    Main Stream50 Hz: 20 fps (3072*1728), 25 fps ( 1920 X 1080, 1280 X 720)
    60 Hz:  20 fps (3072*1728), 24 fps ( 1920 X 1080, 1280 X 720)
    Substream50 Hz: 25 fps (1280 X 720,640 X 480, 640 X 360)
    60 Hz: 24 fps (1280 X 720,640 X 480, 640 X 360)
    Video Bitrate32 Kbps - 6 Mbps Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
    Audio InputBuilt-in Microphone, record with audio Lens2.8 mm
    Min. IlluminationColor: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR Angle of ViewHorizontal FOV 99°, vertical FOV 55°, diagonal FOV 116°
    Number of Infrared LEDs2 pcs Night Vision DistanceUp to 100 ft/30 m
    Video CompressionMain stream: H.265+/H.265/H.264+/H.264
    Sub-stream: H.265/H.264/MJPEG
    Motion detection 2.0Supoort, include Human & Vehicle detection
    Image EnhancementBLC, HLC, 3D DNR Wide Dynamic Range120 dB WDR
    ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, SMTP APIOpen Network Video Interface
    Region of Interest (ROI)1 fixed region for main stream Privacy Mask4 programmable polygon privacy masks
    General FunctionMirror,rotate,password protection,video tampering alarm, remote access Ethernet1 RJ45 10 M/100 M self-adaptive Ethernet port
    Image Sensor1/3" Progressive Scan CMOS
    Main Stream50 Hz: 20 fps (3072*1728), 25 fps ( 1920 X 1080, 1280 X 720)
    60 Hz:  20 fps (3072*1728), 24 fps ( 1920 X 1080, 1280 X 720)
    Video Bitrate32 Kbps - 6 Mbps
    Audio InputBuilt-in Microphone, record with audio
    Min. IlluminationColor: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
    Number of Infrared LEDs2 pcs
    Video CompressionMain stream: H.265+/H.265/H.264+/H.264
    Sub-stream: H.265/H.264/MJPEG
    Image EnhancementBLC, HLC, 3D DNR
    ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, SMTP
    Region of Interest (ROI)1 fixed region for main stream
    General FunctionMirror,rotate,password protection,video tampering alarm, remote access
    Max resolution 3K(3072*1728), 16: 9 picture ratio is more suitable for the most popular display
    Substream 50 Hz: 25 fps (1280 X 720,640 X 480, 640 X 360)
    60 Hz: 24 fps (1280 X 720,640 X 480, 640 X 360)
    Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
    Lens 2.8 mm
    Angle of View Horizontal FOV 99°, vertical FOV 55°, diagonal FOV 116°
    Night Vision Distance Up to 100 ft/30 m
    Motion detection 2.0 Supoort, include Human & Vehicle detection
    Wide Dynamic Range 120 dB WDR
    API Open Network Video Interface
    Privacy Mask 4 programmable polygon privacy masks
    Ethernet 1 RJ45 10 M/100 M self-adaptive Ethernet port
    General
    HousingMetal & Plastic ColorWhite & Black
    StorageBuilt-in microSD/SDHC/SDXC Slot, up to 256 GB Hardware ResetYes
    Operating PowerDC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W Operating Temperature-22 °F – 140 °F/-30 °C – 60 °C
    Indoor/Outdoor UseIndoor/Outdoor Interface ProtectionIP67, TVS 2000 V Lightning Protection, Surge Protection and Voltage Transient Protection
    Dimension (L X W X H)7.0" X 2.6" X 2.7"/177.6 X 66.2 X 67.8 mm Weight0.6 lb./270 g
    HousingMetal & Plastic
    StorageBuilt-in microSD/SDHC/SDXC Slot, up to 256 GB
    Operating PowerDC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W
    Indoor/Outdoor UseIndoor/Outdoor
    Dimension (L X W X H)7.0" X 2.6" X 2.7"/177.6 X 66.2 X 67.8 mm
    Color White & Black
    Hardware Reset Yes
    Operating Temperature -22 °F – 140 °F/-30 °C – 60 °C
    Interface Protection IP67, TVS 2000 V Lightning Protection, Surge Protection and Voltage Transient Protection
    Weight 0.6 lb./270 g
    What's in the Box
  • ➀ 1X/4X Security Camera(s)
  • ➁ 1X/4X Mounting Screw Bag(s)
  • ➂ 1X User Manual
  • ➃1X Screw Driver (For dome camera only)
  • Camera
    Image Sensor1/3" Progressive Scan CMOS Max resolution3K(3072*1728), 16: 9 picture ratio is more suitable for the most popular display
    Main Stream50 Hz: 20 fps (3072*1728), 25 fps ( 1920 X 1080, 1280 X 720)
    60 Hz:  20 fps (3072*1728), 24 fps ( 1920 X 1080, 1280 X 720)
    Substream50 Hz: 25 fps (1280 X 720,640 X 480, 640 X 360)
    60 Hz: 24 fps (1280 X 720,640 X 480, 640 X 360)
    Video Bitrate32 Kbps - 6 Mbps Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
    Video CompressionMain stream: H.265+/H.265/H.264+/H.264
    Sub-stream: H.265/H.264/MJPEG
    Audio InputBuilt-in Microphone, record with audio
    Lens2.8 mm Min. IlluminationColor: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
    Angle of ViewHorizontal FOV 99°, vertical FOV 55°, diagonal FOV 116° Number of Infrared LEDs2 pcs
    Night Vision DistanceUp to 100 ft/30 m Motion detection 2.0Supoort, include Human & Vehicle detection
    Image EnhancementBLC, HLC, 3D DNR Wide Dynamic Range120 dB WDR
    ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, SMTP APIOpen Network Video Interface
    Region of Interest (ROI)1 fixed region for main stream Privacy Mask4 programmable polygon privacy masks
    General FunctionMirror,rotate,password protection,video tampering alarm, remote access Ethernet1 RJ45 10 M/100 M self-adaptive Ethernet port
    Image Sensor1/3" Progressive Scan CMOS
    Main Stream50 Hz: 20 fps (3072*1728), 25 fps ( 1920 X 1080, 1280 X 720)
    60 Hz:  20 fps (3072*1728), 24 fps ( 1920 X 1080, 1280 X 720)
    Video Bitrate32 Kbps - 6 Mbps
    Video CompressionMain stream: H.265+/H.265/H.264+/H.264
    Sub-stream: H.265/H.264/MJPEG
    Lens2.8 mm
    Angle of ViewHorizontal FOV 99°, vertical FOV 55°, diagonal FOV 116°
    Night Vision DistanceUp to 100 ft/30 m
    Image EnhancementBLC, HLC, 3D DNR
    ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, SMTP
    Region of Interest (ROI)1 fixed region for main stream
    General FunctionMirror,rotate,password protection,video tampering alarm, remote access
    Max resolution 3K(3072*1728), 16: 9 picture ratio is more suitable for the most popular display
    Substream 50 Hz: 25 fps (1280 X 720,640 X 480, 640 X 360)
    60 Hz: 24 fps (1280 X 720,640 X 480, 640 X 360)
    Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
    Audio Input Built-in Microphone, record with audio
    Min. Illumination Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
    Number of Infrared LEDs 2 pcs
    Motion detection 2.0 Supoort, include Human & Vehicle detection
    Wide Dynamic Range 120 dB WDR
    API Open Network Video Interface
    Privacy Mask 4 programmable polygon privacy masks
    Ethernet 1 RJ45 10 M/100 M self-adaptive Ethernet port
    General
    HousingMetal & Plastic ColorWhite
    StorageBuilt-in microSD/SDHC/SDXC Slot, up to 256 GB Hardware ResetYes
    Operating PowerDC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W Operating Temperature-22 °F – 140 °F/-30 °C – 60 °C
    Indoor/Outdoor UseIndoor/Outdoor Weight0.6 lb./270 g
    Interface ProtectionIP67, TVS 2000 V Lightning Protection, Surge Protection and Voltage Transient Protection Dimension (L X W X H)Ø 110 × 100.8 mm (Ø 4.3" × 4.0")
    HousingMetal & Plastic
    StorageBuilt-in microSD/SDHC/SDXC Slot, up to 256 GB
    Operating PowerDC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W
    Indoor/Outdoor UseIndoor/Outdoor
    Interface ProtectionIP67, TVS 2000 V Lightning Protection, Surge Protection and Voltage Transient Protection
    Color White
    Hardware Reset Yes
    Operating Temperature -22 °F – 140 °F/-30 °C – 60 °C
    Weight 0.6 lb./270 g
    Dimension (L X W X H) Ø 110 × 100.8 mm (Ø 4.3" × 4.0")
    What's in the Box
  • ➀ 1X/4X Security Camera(s)
  • ➁ 1X/4X Mounting Screw Bag(s)
  • ➂ 1X User Manual
  • ➃1X Screw Driver (For dome camera only)
  • Camera
    Image Sensor1/3" Progressive Scan CMOS IVideo compressionH.265+/H.265/H.264+/H.264
    Main Stream Max. Frame Rate50Hz: 20 fps (2592 × 1944), 25 fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
    60Hz: 20 fps (2592 × 1944), 30 fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
    Sub-stream Max. Frame Rate50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)
    60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
    Video Bitrate32 Kbps - 8 Mbps Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
    Audio inputBulit-in Microphone Lens2.8 mm
    Min. IlluminationColor: 0.028 Lux @(F2.0, AGC On) Angle of ViewHorizontal FoV 71.5°, Vertical FoV 53°, Diagonal FoV 91°
    Number of Infrared LEDs2 pcs Night Vision DistanceUp to 100 ft/30 m
    Wide Dynamic Range120DB WDR  DNR3D DNR
    ONVIFSupport IR Cut FilterYes
    EthernetRJ45 X1 (10 M/100 M)
    Image Sensor1/3" Progressive Scan CMOS
    Main Stream Max. Frame Rate50Hz: 20 fps (2592 × 1944), 25 fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
    60Hz: 20 fps (2592 × 1944), 30 fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
    Video Bitrate32 Kbps - 8 Mbps
    Audio inputBulit-in Microphone
    Min. IlluminationColor: 0.028 Lux @(F2.0, AGC On)
    Number of Infrared LEDs2 pcs
    Wide Dynamic Range120DB WDR
    ONVIFSupport
    EthernetRJ45 X1 (10 M/100 M)
    IVideo compression H.265+/H.265/H.264+/H.264
    Sub-stream Max. Frame Rate 50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)
    60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
    Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
    Lens 2.8 mm
    Angle of View Horizontal FoV 71.5°, Vertical FoV 53°, Diagonal FoV 91°
    Night Vision Distance Up to 100 ft/30 m
    DNR 3D DNR
    IR Cut Filter Yes
    General
    HousingMetal & Plastic ColorWhite
    StorageBuilt-in microSD/SDHC/SDXC Slot, up to 256 GB Hardware ResetYes
    Operating PowerDC 12 V; PoE (802.3af) Operating Temperature-22 °F – 140 °F/-30 °C – 60 °C
    Indoor/Outdoor UseIndoor/Outdoor Interface ProtectionIP67, TVS 2000 V Lightning Protection, Surge Protection and Voltage Transient Protection
    Dimension (L X W X H)Ø120 × 92.2 mm (4.72" × 3.63") Weight440 g (1.0 lb.)
    HousingMetal & Plastic
    StorageBuilt-in microSD/SDHC/SDXC Slot, up to 256 GB
    Operating PowerDC 12 V; PoE (802.3af)
    Indoor/Outdoor UseIndoor/Outdoor
    Dimension (L X W X H)Ø120 × 92.2 mm (4.72" × 3.63")
    Color White
    Hardware Reset Yes
    Operating Temperature -22 °F – 140 °F/-30 °C – 60 °C
    Interface Protection IP67, TVS 2000 V Lightning Protection, Surge Protection and Voltage Transient Protection
    Weight 440 g (1.0 lb.)
    Video & Audio
    Video CompressionH.264+/H.264/H.265/H.265+/MPEG4 IP Video Input8CH PoE
    Video OutputHDMI up to 4K; VGA up to 1080p Audio Input/Output1/1 RCA
    Incoming Bandwidth80 M Max Recording ResolutionUp to 8MP (3840 X 2160)
    Max Playback ResolutionUp to 8MP (3840 X 2160) Max Playback Channel8CH
    Max Playback Capacity4CH @1080p; 1CH @8MP
    Video CompressionH.264+/H.264/H.265/H.265+/MPEG4
    Video OutputHDMI up to 4K; VGA up to 1080p
    Incoming Bandwidth80 M
    Max Playback ResolutionUp to 8MP (3840 X 2160)
    Max Playback Capacity4CH @1080p; 1CH @8MP
    IP Video Input 8CH PoE
    Audio Input/Output 1/1 RCA
    Max Recording Resolution Up to 8MP (3840 X 2160)
    Max Playback Channel 8CH
    Hard Drive
    HDD1 SATA Interface HDD CapacityUp to 6 TB Capacity for Each HDD
    HDD1 SATA Interface
    HDD Capacity Up to 6 TB Capacity for Each HDD
    External Interface
    Network InterfaceRJ45 X1 (10/100/1000 M) PoE8 Ports (IEEE802.3at / af)
    USB2X USB 2.0
    Network InterfaceRJ45 X1 (10/100/1000 M)
    USB2X USB 2.0
    PoE 8 Ports (IEEE802.3at / af)
    General
    Operating PowerDC 48 V Working Temperature14 °F — 131 °F/-10 °C — +55 °C
    Dimensions (W X H X D)12.4” X 9.4” X 1.9”/315 X 240 X 48 mm Weight (Without Hard Disk)2.2 lbs./1 kg
    Power Consumption≤10 W (Without HDD and PoE)
    PoE: Max 25.5 W for Single Port
    Operating PowerDC 48 V
    Dimensions (W X H X D)12.4” X 9.4” X 1.9”/315 X 240 X 48 mm
    Working Temperature 14 °F — 131 °F/-10 °C — +55 °C
    Weight (Without Hard Disk) 2.2 lbs./1 kg
    Power Consumption≤10 W (Without HDD and PoE)
    PoE: Max 25.5 W for Single Port
