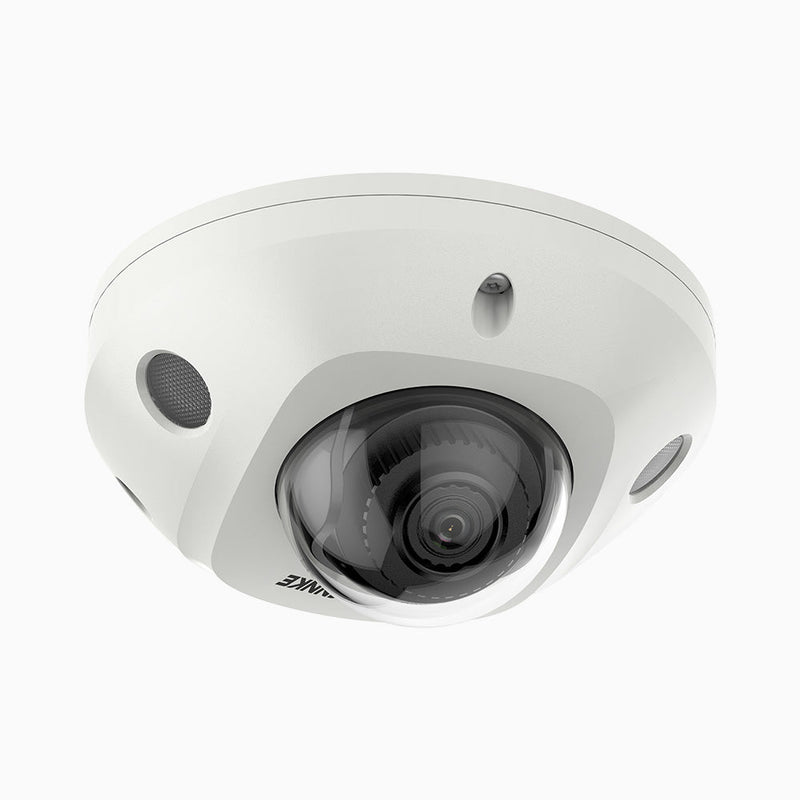

AC400 - 4MP Outdoor Mini Dome PoE Camera, 2688 x 1520 @ 30 fps, Color Night Vision, Human & Vehicle Detection, IK10 Vandal-Resistant & IP67, Built-in Microphone, Max. 512 GB Local Storage

AC400 - 4MP Outdoor Mini Dome PoE Camera, 2688 x 1520 @ 30 fps, Color Night Vision, Human & Vehicle Detection, IK10 Vandal-Resistant & IP67, Built-in Microphone, Max. 512 GB Local Storage



inkl. MwSt.

SKU: AP-I81HQ0102

Note: .

Secure Checkout With:

  • Stichworte: 2-Wege-Audio , 4MP , Dome , Eingebautes Mikrophon , Farbnachtsicht

    4MP HD Images & Color Night Vision

    This camera uses a 1/3" progressive scan CMOS sensor to capture 2688 x 1520 resolution video at 30 fps. Ultra-low illumination 0.005 Lux is still displayed in color. IR supplemental light will provide up to 30m of night vision when in 0 lux condition. No matter day or night, ultra-clear pictures will be presented.

    Smart Human & Vehicle Detection

    Intelligent analysis technology based on deep learning algorithms, which can realize targets classification (human / vehicle / others), and accurately detect concerned targets to improve efficiency of monitoring and searching. False alarms caused by other objects (animals, leaves, light, rain, etc. ) can be largely reduced.

    IP67 & IK08 - Wide Application Scenario

    Designed to meet the demanding requirements of various industries, this cutting-edge device combines water and dust resistance with unparalleled vandal resistance, ensuring superior performance in even the harshest environments. Rated as IP67, Not only can it withstand heavy snowfall, torrential downpours, it can also withstand extreme temperatures from -22 °F/-30° C to 140 °F/60° C.

    Clearer Image Than You Expect

    This camera boasts an impressive 120 dB true WDR for unparalleled dynamic range, 3D DNR for noise reduction, and advanced BLC & HLC features for optimal exposure control. Enjoy crystal-clear visuals, even in challenging lighting conditions. Elevate your viewing experience with our state-of-the-art technology.

    Efficient H.265+ Compression

    With H.265+ compression technology, you can store more information using fewer hard drives, which allows you to do more with less, and dramatically reduce file sizes with this latest video compression format.

    Support MicroSD for Local Storage

    This versatile network camera can record videos onto your microSD card (up to 512 GB), no monitoring & no monthly cloud storage fees. You’ll have full control over your recordings and manage them whenever.

    Multi-platform Real-time Viewing

    Experience the convenience of multi-platform, real-time monitoring that allows you to keep an eye on your life and property from any location. Stay connected and receive timely alerts through our free App and Client, regardless of the number of devices you own. Additionally, you have the option to conveniently view the feed on web browsers such as IE, Chrome, and Firefox.

    Plug & Play, Easily Installation

    Integrated PoE technology simplifies connectivity by enabling the transmission of data and power through one cable. Only one ethernet cable handles both data and power transmission.



    Download I81HQ Specification

    Camera Image Sensor 1/3" Progressive Scan CMOS
    Max resolution 4MP(2688 × 1520)
    Main Stream 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
    60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
    Substream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
    60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
    Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
    60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
    *Third stream is supported under certain settings.
    Video Compression Main stream: H.265/H.264/H.265+/H.264+
    Sub-stream: H.265/H.264/MJPEG
    Third stream: H.265/H.264
    *Third stream is supported under certain settings
    Video Bitrate 32 Kbps to 8 Mbps
    Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
    Audio Input Built-in Microphone, record with audio
    Lens 2.8 mm
    Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
    Angle of View Horizontal FOV 104.3°, vertical FOV 55.9°, diagonal FOV 123.8°
    Supplement Light Type IR
    Supplement Light Range IR: up to 30 m
    Basic Event Motion detection (human and vehicle targets classification)
    Smart Event Line crossing detection, intrusion detection, face detection
    Image Enhancement BLC, HLC, 3D DNR
    Wide Dynamic Range 120 dB WDR
    Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE,WebSocket, WebSockets
    API Open Network Video Interface Version 18.12
    Region of Interest (ROI) 1 fixed region for main stream
    Privacy Mask 4 programmable polygon privacy masks
    General Function Anti-flicker, heartbeat, password reset via email, pixel counter, remote access
    General Housing Base: aluminum, cover: plastic
    Color White
    Ethernet 1 RJ45 10 M/100 M self-adaptive Ethernet port
    Storage Built-in microSD slot up to 512 GB & NAS
    Hardware Reset Yes
    Audio interface 1 input (line in) & 1 output (line out),  two-core terminal block
    Alarm interface 1 input, 1 output (max. 12 VDC, 20 mA)
    Operating Power DC 12 V± 25%, max. 5.5 W; PoE (802.3af), max. 6.5 W
    Operating Temperature -22 °F – 140 °F/-30 °C – 60 °C
    Indoor/Outdoor Use Indoor/Outdoor
    Interface Protection IP67, IK8
    Dimension (L X W X H) Ø110 mm × 57.4 mm (Ø 4.3" × 2.3")
    Weight Approx. 380 g (0.8 lb.)
