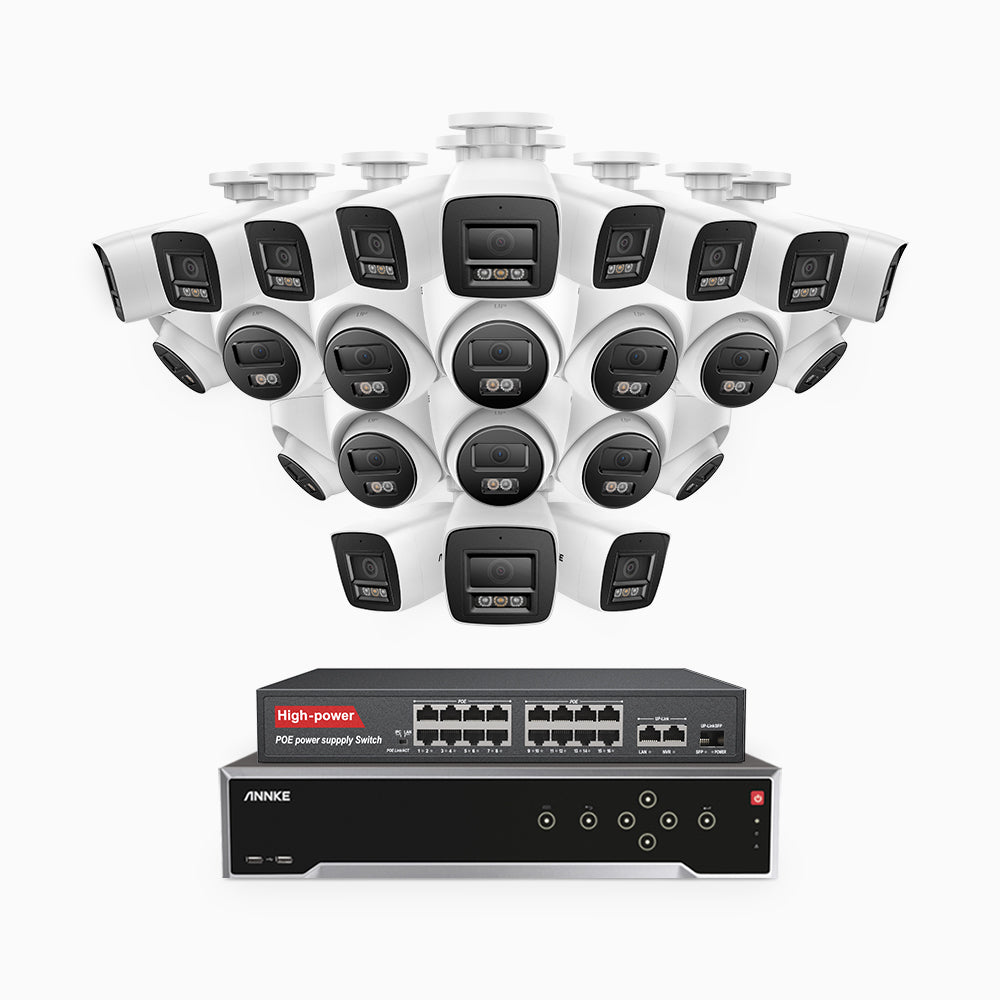

ANNKE H800
Die beste Kamera ist jetzt noch besser
Erfassen Sie klare Nachtdetails mit Smart Dual Light
Im Standard-Smart-Dual-Light-Modus kann die Kamera bei Nacht mithilfe von Infrarotlicht das Ziel klar erkennen. Wenn sich ein bewegliches Ziel nähert, schaltet sich das weiße Licht ein und das Infrarotlicht aus, um ein klares Farbbild zu erhalten. Zusätzlich können Sie auch den Voll-Infrarot- oder den Voll-Weißlichtmodus wählen.
Unübertroffene 4K-Qualität in allen Umgebungen
Das 4 MM Objektiv mit dem High-End Sony IMX274 Bildsensor wurde von den weltbesten Ingenieuren hunderte Male optimiert und deckt ein bis zu 96° diagonales Sichtfeld in 4K Ultra HD ab.
120 dB WDR, 3D DNR, BLC & HLC Bildverbesserungsalgorithmen ermöglichen der Kamera, atemberaubende 4K Aufnahmen bei jedem Helligkeitsniveau zu erzeugen.
Neu verbesserte Personen- und Fahrzeugerkennung – Perfektion in Bewegung
Dies ist ein großer Fortschritt in der intelligenten Bewegungserkennung. Die erweiterte Personen- und Fahrzeugerkennung erkennt nur Personen oder Fahrzeuge. Dies reduziert unerwünschte Bewegungsalarme, die von Tieren oder zufälligen unbelebten Objekten wie wedelnden Ästen, fallenden Blättern, Regentropfen usw. ausgelöst werden.
Audio mit Geräuschunterdrückung
Das eingebaute Noise-Cancelling-Mikrofon kann Umgebungsgeräusche automatisch filtern und Geräusche von bis zu 6m aufnehmen.
Fortschrittliches H.265+ HEVC Videoformat
Die ANNKE H.265+ Codierung erlaubt es der Kamera, längere Videos bei weniger Bandbreite zu erzeugen. Hierdurch kann Geld gespart werden, da keine zusätzlichen HDDs benötigt werden.
Wetterfest für alle Jahreszeiten
Die IP Kamera ist IP67 wetterfest und funktioniert sogar nach 30 Minuten in 1m Wasser. Die Kamera wurde bei extrem heißem und kaltem Wetter getestet (-22 °F – 140 °F/-30 °C – 60 °C) und nimmt weiterhin außergewöhnliche 4K Ultra HD Aufnahmen ohne Unklarheiten und Bildverzerrungen auf.
140 °F | 60 °C
Hitzebeständig
Metall & Kunststoff
Robustes Gehäuse
-22 °F | -30 °C
Kältebeständig
IP67
Wetterfest und wasserdicht
Kostengünstig und reichhaltige Features
PoE oder DC Stromzufuhr
Die Kamera kann über PoE mit einem NVR/PoE Injektor oder mit einem Adapter für die Stromversorgung verbunden werden.
Lokaler Speicher
Unterstützt bis zu 256 GB TF-Karte (nicht im Lieferumfang enthalten) für die lokale Videospeicherung ohne monatliche Cloud-Gebühren.
Einstellbare Bewegungszonen
Erstellen Sie spezielle Bewegungszonen für Garagen, Haustür, etc., um Bewegungsnachrichten zu erhalten, die zählen.
Bewegungsnachrichten & Fernzugriff
Erhalten Sie sofortige Push-Nachrichten auf die App & E-Mail-Benachrichtigungen, sobald Bewegungen registriert werden. Sie können einfach über Ihre mobilen Geräte auf die Kamera zugreifen.
What's in the Box （I91DL）
I91DL Camera
| Image Sensor1/2.4" Progressive Scan CMOS | Max resolution3840*2160(8MP) |
|
Main Stream50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 15fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
Substream50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) |
| Video Bitrate32 Kbps - 16 Mbps | Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC |
| Audio InputBuilt-in Microphone, record with audio | Lens4 mm |
|
Video CompressionMain stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG |
Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Angle of ViewHorizontal FOV 78°, vertical FOV 38°, diagonal FOV 96° | Supplement Light TypeSmart Dual-Light, IR, White Light |
| Supplement Light RangeUp to 30 m | Motion detection 2.0Supoort, include Human & Vehicle detection |
| Image EnhancementBLC, HLC, 3D DNR | Wide Dynamic Range120 dB WDR |
| ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP | APIOpen Network Video Interface Version (Profile S, Profile T, Profile G) |
| Region of Interest (ROI)1 fixed region for main stream | Privacy Mask4 programmable polygon privacy masks |
| General FunctionRotate mode, mirror, password protection, remote access | Ethernet1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Image Sensor1/2.4" Progressive Scan CMOS |
|
Main Stream50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 15fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Video Bitrate32 Kbps - 16 Mbps |
| Audio InputBuilt-in Microphone, record with audio |
|
Video CompressionMain stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG |
| Angle of ViewHorizontal FOV 78°, vertical FOV 38°, diagonal FOV 96° |
| Supplement Light RangeUp to 30 m |
| Image EnhancementBLC, HLC, 3D DNR |
| ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP |
| Region of Interest (ROI)1 fixed region for main stream |
| General FunctionRotate mode, mirror, password protection, remote access |
| Max resolution 3840*2160(8MP) |
|
Substream 50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) |
| Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC |
| Lens 4 mm |
| Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Supplement Light Type Smart Dual-Light, IR, White Light |
| Motion detection 2.0 Supoort, include Human & Vehicle detection |
| Wide Dynamic Range 120 dB WDR |
| API Open Network Video Interface Version (Profile S, Profile T, Profile G) |
| Privacy Mask 4 programmable polygon privacy masks |
| Ethernet 1 RJ45 10 M/100 M self-adaptive Ethernet port |
I91DL General
| HousingMetal & Plastic | ColorWhite & Black |
| StorageBuilt-in microSD/SDHC/SDXC Slot, up to 512 GB | Hardware ResetYes |
| Operating PowerDC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W | Operating Temperature-22 °F – 140 °F/-30 °C – 60 °C |
| Indoor/Outdoor UseIndoor/Outdoor | Interface ProtectionIP67 |
| Dimension (L X W X H)170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7") | Weight0.6 lb./285 g |
| HousingMetal & Plastic |
| StorageBuilt-in microSD/SDHC/SDXC Slot, up to 512 GB |
| Operating PowerDC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W |
| Indoor/Outdoor UseIndoor/Outdoor |
| Dimension (L X W X H)170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7") |
| Color White & Black |
| Hardware Reset Yes |
| Operating Temperature -22 °F – 140 °F/-30 °C – 60 °C |
| Interface Protection IP67 |
| Weight 0.6 lb./285 g |
What's in the Box （I91DF）
I91DF Camera
| Image Sensor1/2.4" Progressive Scan CMOS | Max resolution3840*2160(8MP) |
| Video Bitrate32 Kbps - 16 Mbps | Audio Compression3G.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC |
| Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR | Angle of ViewHorizontal FOV 78°, vertical FOV 38°, diagonal FOV 96° |
|
Video CompressionMain stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG |
Supplement Light TypeSmart Dual-Light, IR, White Light |
| Supplement Light RangeUp to 30 m | Motion detection 2.0Supoort, include Human & Vehicle detection |
| Audio InputBuilt-in Microphone, record with audio | Lens4 mm |
|
Main Stream50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 15fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
Substream50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) |
| Image EnhancementBLC, HLC, 3D DNR | Wide Dynamic Range120 dB WDR |
| ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP | APIOpen Network Video Interface Version (Profile S, Profile T, Profile G) |
| Region of Interest (ROI)1 fixed region for main stream | Privacy Mask4 programmable polygon privacy masks |
| General FunctionRotate mode, mirror, password protection, remote access | Ethernet1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Image Sensor1/2.4" Progressive Scan CMOS |
| Video Bitrate32 Kbps - 16 Mbps |
| Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
|
Video CompressionMain stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG |
| Supplement Light RangeUp to 30 m |
| Audio InputBuilt-in Microphone, record with audio |
|
Main Stream50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 15fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Image EnhancementBLC, HLC, 3D DNR |
| ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP |
| Region of Interest (ROI)1 fixed region for main stream |
| General FunctionRotate mode, mirror, password protection, remote access |
| Max resolution 3840*2160(8MP) |
| Audio Compression 3G.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC |
| Angle of View Horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96° |
| Supplement Light Type Smart Dual-Light, IR, White Light |
| Motion detection 2.0 Supoort, include Human & Vehicle detection |
| Lens 4 mm |
|
Substream 50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) |
| Wide Dynamic Range 120 dB WDR |
| API Open Network Video Interface Version (Profile S, Profile T, Profile G) |
| Privacy Mask 4 programmable polygon privacy masks |
| Ethernet 1 RJ45 10 M/100 M self-adaptive Ethernet port |
I91DF General
| HousingMetal & Plastic | ColorWhite |
| StorageBuilt-in microSD/SDHC/SDXC Slot, up to 512 GB | Hardware ResetYes |
| Operating PowerDC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W | Operating Temperaturet-22 °F – 140 °F/-30 °C – 60 °C |
| Indoor/Outdoor UseIndoor/Outdoor | Interface ProtectionIP67 & IK08 |
| Dimension (L X W X H)Ø121.4 mm × 97.6 mm (Ø4.78" × 3.84") | Weight1.2 lb./550 g |
| HousingMetal & Plastic |
| StorageBuilt-in microSD/SDHC/SDXC Slot, up to 512 GB |
| Operating PowerDC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W |
| Indoor/Outdoor UseIndoor/Outdoor |
| Dimension (L X W X H)Ø121.4 mm × 97.6 mm (Ø4.78" × 3.84") |
| Color White |
| Hardware Reset Yes |
| Operating Temperaturet -22 °F – 140 °F/-30 °C – 60 °C |
| Interface Protection IP67 & IK08 |
| Weight 1.2 lb./550 g |
What's in the Box （I91DM）
I91DM Camera
| Image Sensor1/2.4" Progressive Scan CMOS | Max resolution3840*2160(8MP) |
|
Main Stream50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 15fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
Substream50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) |
| Video Bitrate32 Kbps - 16 Mbps | Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC |
| Audio InputBuilt-in Microphone, record with audio | Lens4 mm |
|
Video CompressionMain stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG |
Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Angle of ViewHorizontal FOV 78°, vertical FOV 38°, diagonal FOV 96° | Supplement Light TypeSmart Dual-Light, IR, White Light |
| Supplement Light RangeIR: up to 30 m, white Light: up to 20 m | Motion detection 2.0Supoort, include Human & Vehicle detection |
| Image EnhancementBLC, HLC, 3D DNR | Wide Dynamic Range120 dB WDR |
| ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP | APIOpen Network Video Interface Version (Profile S, Profile T, Profile G) |
| Region of Interest (ROI)1 fixed region for main stream | Privacy Mask4 programmable polygon privacy masks |
| General FunctionRotate mode, mirror, password protection, remote access | Ethernet1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Image Sensor1/2.4" Progressive Scan CMOS |
|
Main Stream50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 15fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Video Bitrate32 Kbps - 16 Mbps |
| Audio InputBuilt-in Microphone, record with audio |
|
Video CompressionMain stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG |
| Angle of ViewHorizontal FOV 78°, vertical FOV 38°, diagonal FOV 96° |
| Supplement Light RangeIR: up to 30 m, white Light: up to 20 m |
| Image EnhancementBLC, HLC, 3D DNR |
| ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP |
| Region of Interest (ROI)1 fixed region for main stream |
| General FunctionRotate mode, mirror, password protection, remote access |
| Max resolution 3840*2160(8MP) |
|
Substream 50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) |
| Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC |
| Lens 4 mm |
| Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Supplement Light Type Smart Dual-Light, IR, White Light |
| Motion detection 2.0 Supoort, include Human & Vehicle detection |
| Wide Dynamic Range 120 dB WDR |
| API Open Network Video Interface Version (Profile S, Profile T, Profile G) |
| Privacy Mask 4 programmable polygon privacy masks |
| Ethernet 1 RJ45 10 M/100 M self-adaptive Ethernet port |
I91DM General
| HousingMetal & Plastic | ColorWhite |
| StorageBuilt-in microSD/SDHC/SDXC Slot, up to 512 GB | Hardware ResetYes |
| Operating PowerDC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W | Operating Temperature-22 °F – 140 °F/-30 °C – 60 °C |
| Indoor/Outdoor UseIndoor/Outdoor | Interface ProtectionIP67 |
| Dimension (L X W X H)Ø110 mm × 89.2 mm (Ø4.3" × 3.5") | Weight0.7 lb./340 g |
| HousingMetal & Plastic |
| StorageBuilt-in microSD/SDHC/SDXC Slot, up to 512 GB |
| Operating PowerDC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W |
| Indoor/Outdoor UseIndoor/Outdoor |
| Dimension (L X W X H)Ø110 mm × 89.2 mm (Ø4.3" × 3.5") |
| Color White |
| Hardware Reset Yes |
| Operating Temperature -22 °F – 140 °F/-30 °C – 60 °C |
| Interface Protection IP67 |
| Weight 0.7 lb./340 g |
NVR Video & Audio
| Video CompressionH.264+/H.264/H.265/H.265+/MPEG4 | IP Video Input8CH PoE |
| Video OutputHDMI up to 4K; VGA up to 1080p | Audio Input/Output1/1 RCA |
| Incoming Bandwidth80 M | Max Recording ResolutionUp to 8MP (3840 X 2160) |
| Max Playback ResolutionUp to 8MP (3840 X 2160) | Max Playback Channel8CH |
| Max Playback Capacity4CH @1080p; 1CH @8MP |
| Video CompressionH.264+/H.264/H.265/H.265+/MPEG4 |
| Video OutputHDMI up to 4K; VGA up to 1080p |
| Incoming Bandwidth80 M |
| Max Playback ResolutionUp to 8MP (3840 X 2160) |
| Max Playback Capacity4CH @1080p; 1CH @8MP |
| IP Video Input 8CH PoE |
| Audio Input/Output 1/1 RCA |
| Max Recording Resolution Up to 8MP (3840 X 2160) |
| Max Playback Channel 8CH |
NVR Hard Drive
| HDD1 SATA Interface | HDD CapacityUp to 6 TB Capacity for Each HDD |
| HDD1 SATA Interface |
| HDD Capacity Up to 6 TB Capacity for Each HDD |
NVR External Interface
| Network InterfaceRJ45 X1 (10/100M ) | PoE8 Ports (IEEE802.3at / af) |
| USB2X USB 2.0 |
| Network InterfaceRJ45 X1 (10/100M ) |
| USB2X USB 2.0 |
| PoE 8 Ports (IEEE802.3at / af) |
NVR General
| Operating PowerDC 48 V | Working Temperature14 °F — 131 °F/-10 °C — +55 °C |
| Dimensions (W X H X D)12.5 ” X 9.4” X 1.9”/315 X 240 X 48 mm | Weight (Without Hard Disk)2.2 lbs./1 kg |
|
Power Consumption≤10 W (Without HDD and PoE)
PoE: Max 25.5 W for Single Port |
| Operating PowerDC 48 V |
| Dimensions (W X H X D)12.5 ” X 9.4” X 1.9”/315 X 240 X 48 mm |
| Working Temperature 14 °F — 131 °F/-10 °C — +55 °C |
| Weight (Without Hard Disk) 2.2 lbs./1 kg |
|
Power Consumption≤10 W (Without HDD and PoE)
PoE: Max 25.5 W for Single Port |
